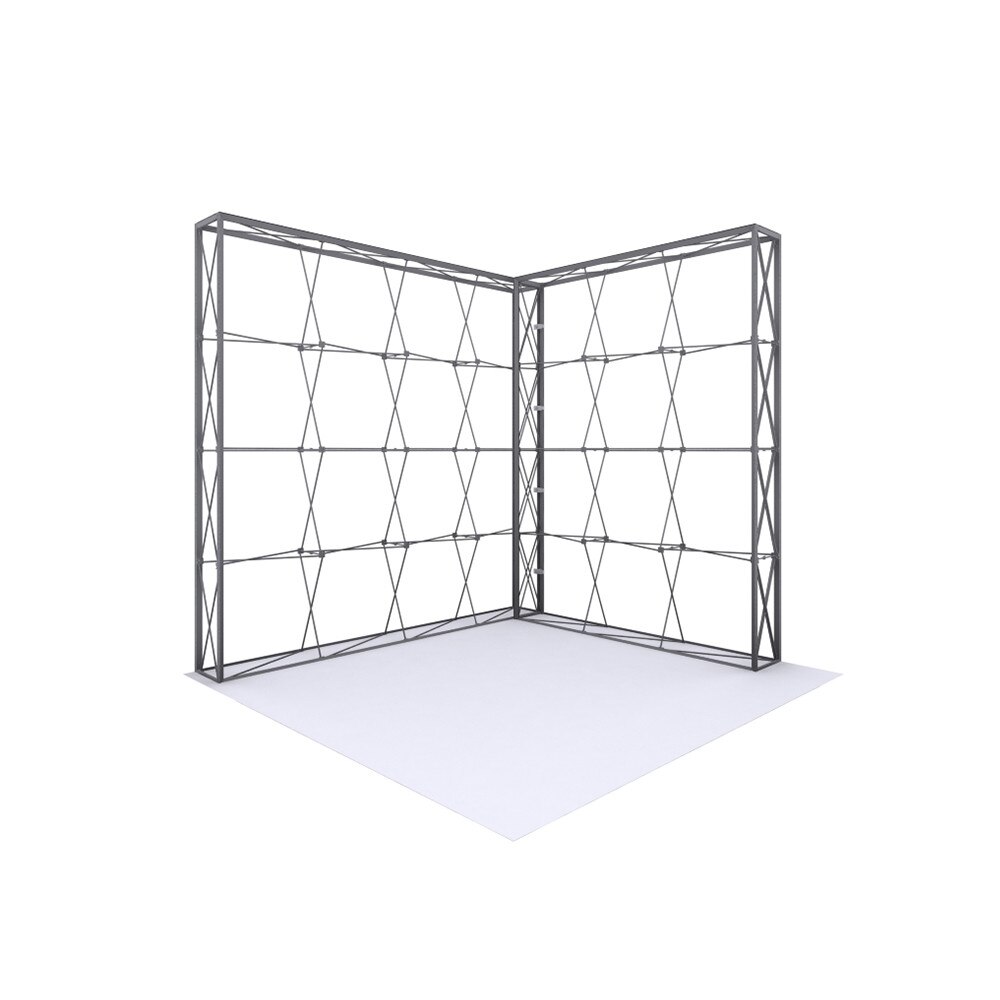

10 ft L-Shape Lumiere Light Wall® Configuration A No Lights (Hardware Only)
10 ft L-Shape Lumiere Light Wall® Configuration A No Lights (Hardware Only)
Description
Introducing the Lumiere Light Wall! A combination of innovative silicone-edge graphics and RPL fabric pop ups offers an easier and more cost effective SEG option. This SEG style display has the depth of the RPL so you can expose more of your message using endcap graphics.
The Lumiere shrinks down in size - simply collapse the geometric frame and the SEG bungeed channel bars, and fold or roll the fabric graphics. Setup can be done by 1 person and in 5-10 minutes. SEG portability is easy and stylish.
Lumiere Light Wall®10 ft. L-Shape Frontlit Frame Only (Configuration A) Includes:
*Please check your tradeshow guidelines to make sure this configuration conforms to the show regulations. If adjustments to the configuration are required to meet the show requirements please contact us at info@wsdisplay.com for a custom configuration quote*
- (2) Pop Up Frames (10 ft. x 7.5 ft. & 10 ft. x 10 ft.)
- (12) 4-Section Channel Bars
- (4) 3-Section Channel Bars
- (8) End Cap Channel Bars

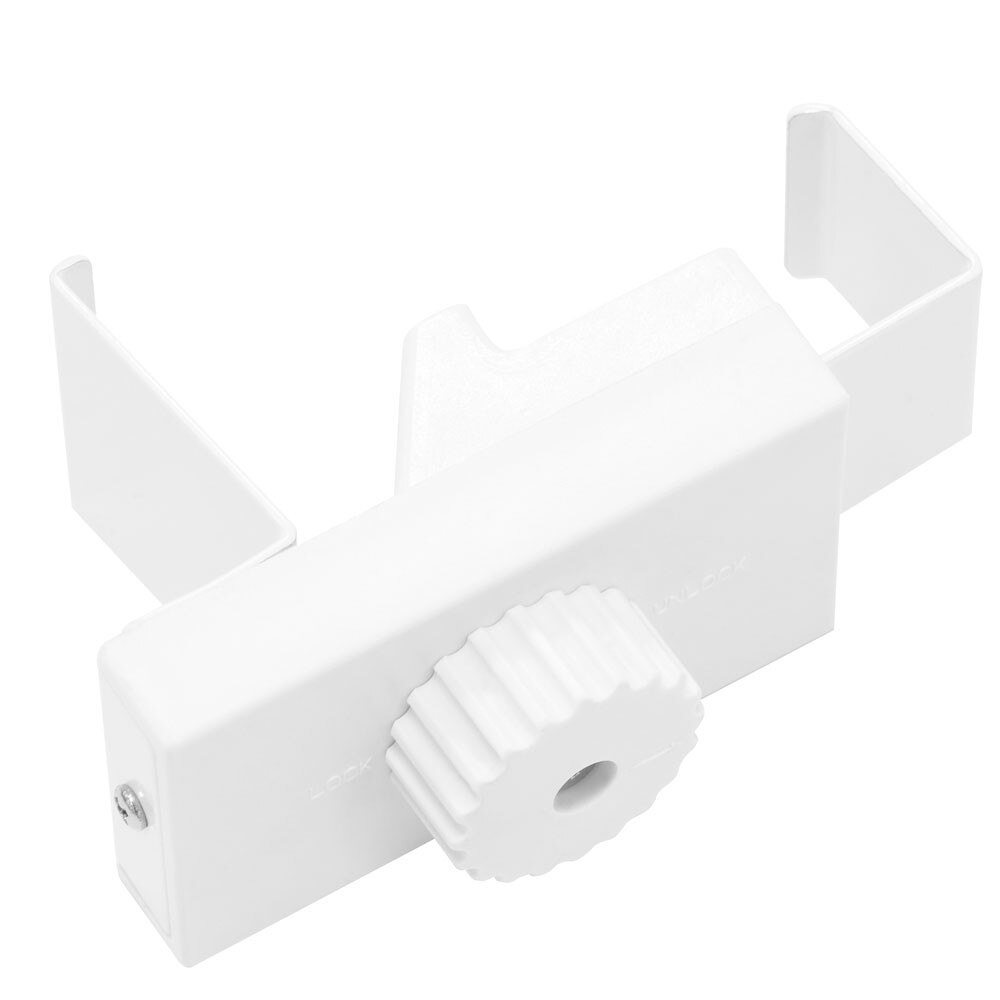

- (4) L-Link Connectros

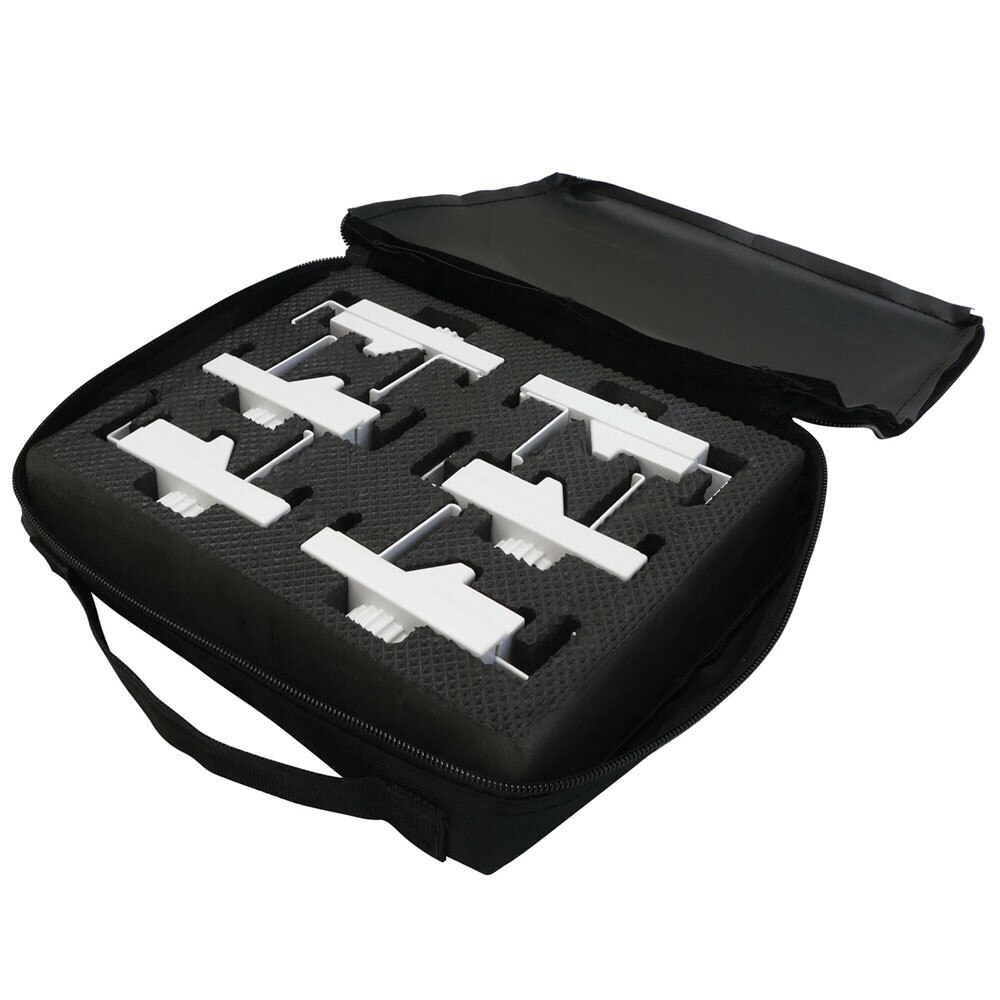

- (2) Channel Bar Bags

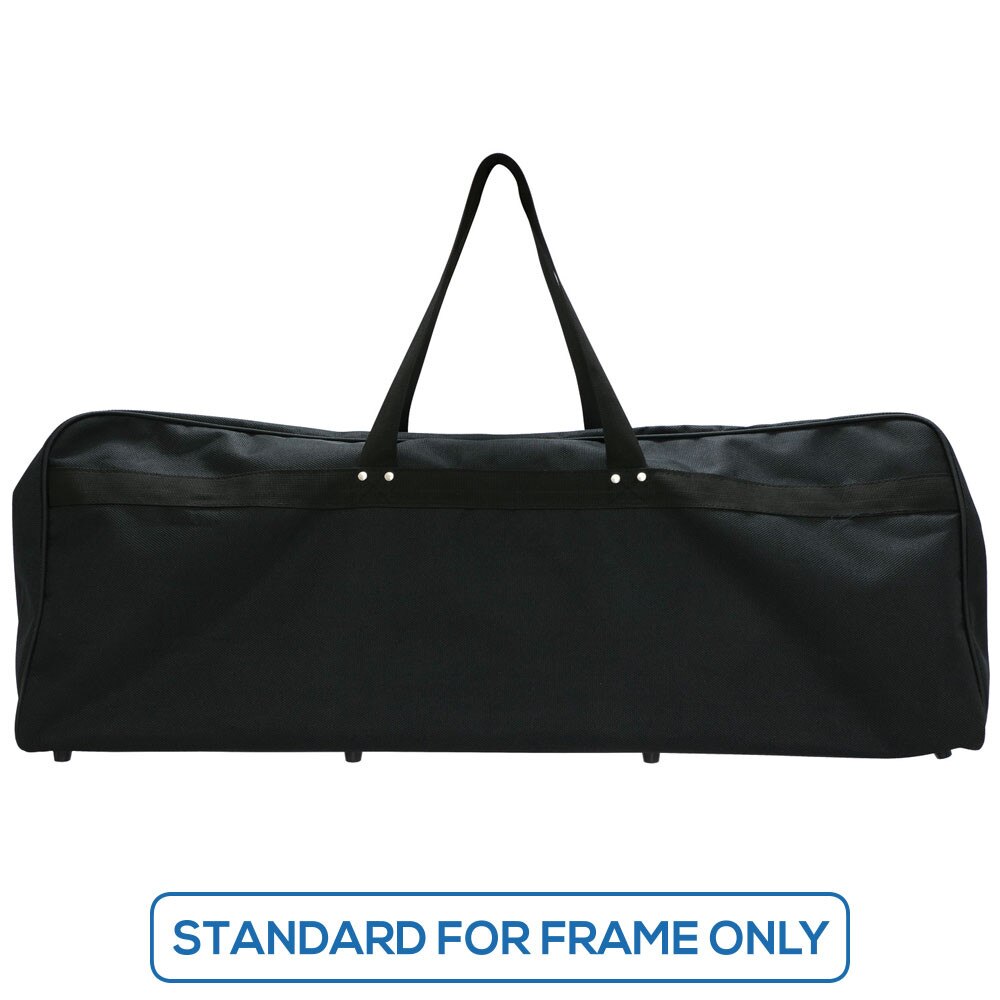

- (2) Carry Bags (for frame)
Display Dimensions:118"W x 118"H x 103"D
Shipping Weight:76 lbs (2 boxes total weight)
Shipping Dimensions:34" L x 14" W x 9" H
*Please check your tradeshow guidelines to make sure this configuration conforms to the show regulations. If adjustments to the configuration are required to meet the show requirements please contact us at info@wsdisplay.com for a custom configuration quote*
Video/360 Views
Comparison Chart
Configuration | A | B | C | D | E | F |
---|---|---|---|---|---|---|
Images | ||||||
Templates | ||||||
Specsheets | ||||||
Instructions | ||||||
Configuration | 4x4 + 3x4 | 4x3 + 3x3 | (Qty.2) 4x4 + 3x4 | (Qty.2) 4x3 Straight | (Qty.2) 4x3 Stacked | (Qty.4) 4x3 + (Qty.2) 1x3 |
Height | 118.1" | 88.6" | 118.1" | 88.6" | 177" | 177" |
Width | 118.1" | 118.1" | 236.2" | 236.2" | 118.1" | 236.2" |
Depth | 103" | 103" | 103" | 14.5" | 14.5" | 44.5" |
Total Weight (frames only) | 72 lbs | 57 lbs | 113 lbs | 62 lbs | 62 lbs | 160 lbs |
L Connector Qty. | 4 | 3 | 4 | 0 | 0 | 6 |
Straight Connector Qty. | 0 | 0 | 4 | 4 | 8 | 28 |
4pc channel bar* Qty. | 4 | 2 | 4 | 4 | 4 | 8 |
3pc channel bar* Qty. | 0 | 2 | 2 | 0 | 0 | 0 |
2pc channel bar* Qty. | 0 | 0 | 0 | 0 | 0 | 0 |
Feet Qty. | 0 | 0 | 0 | 4 | 3 | 0 |
Frame Qty. | 2 | 2 | 3 | 2 | 2 | 6 |
Turnaround time | 2 days | 2 days | 3 days | 2 days | 2 days | 6 days |
*Additional channel bars needed for configurations with double-sided back wall graphics. (4pc, 3pc & 2pc channel bars)
For full information on specific products, please visit each product page for specific spec sheets, templates, instructions and videos.
